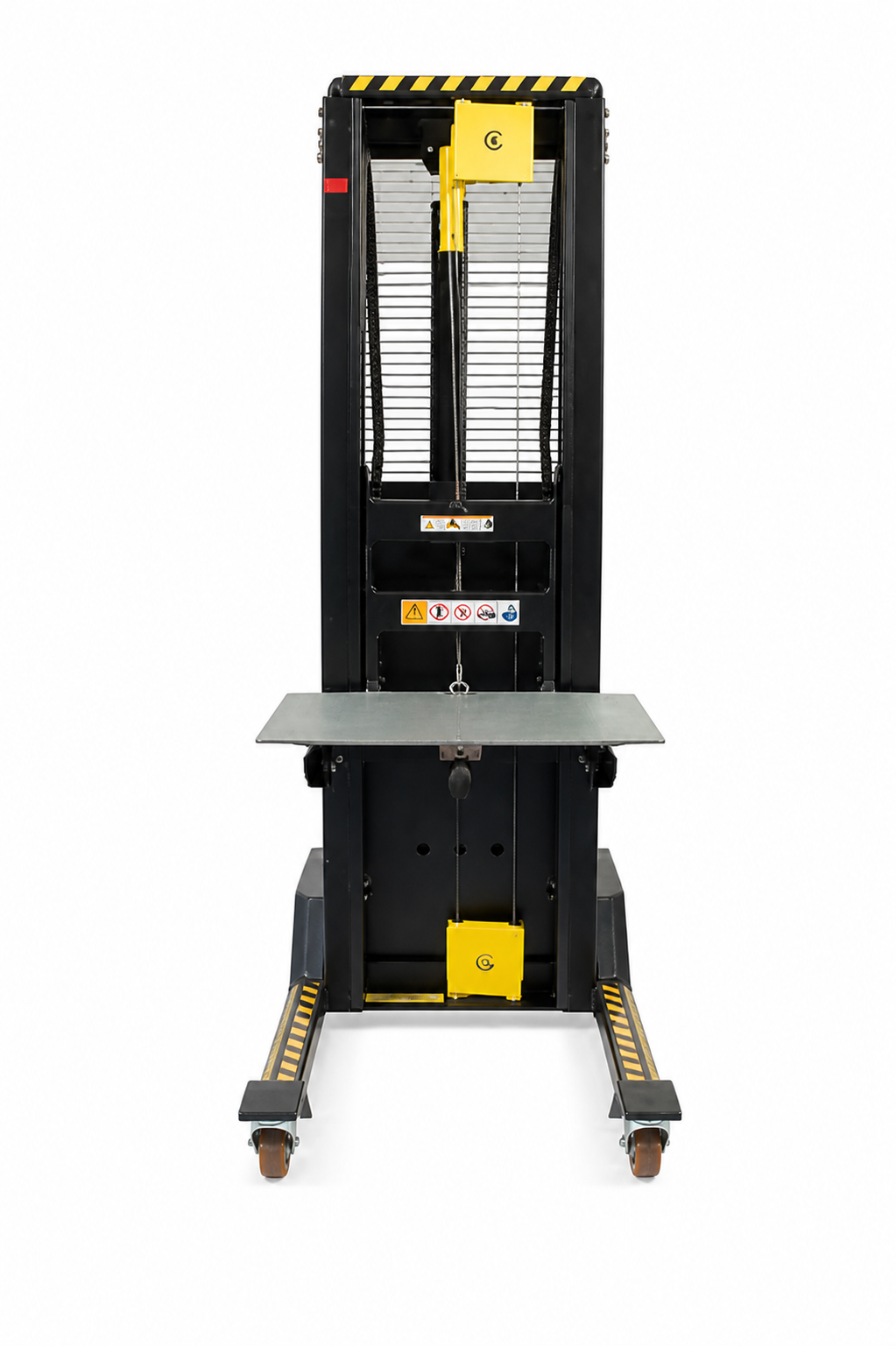

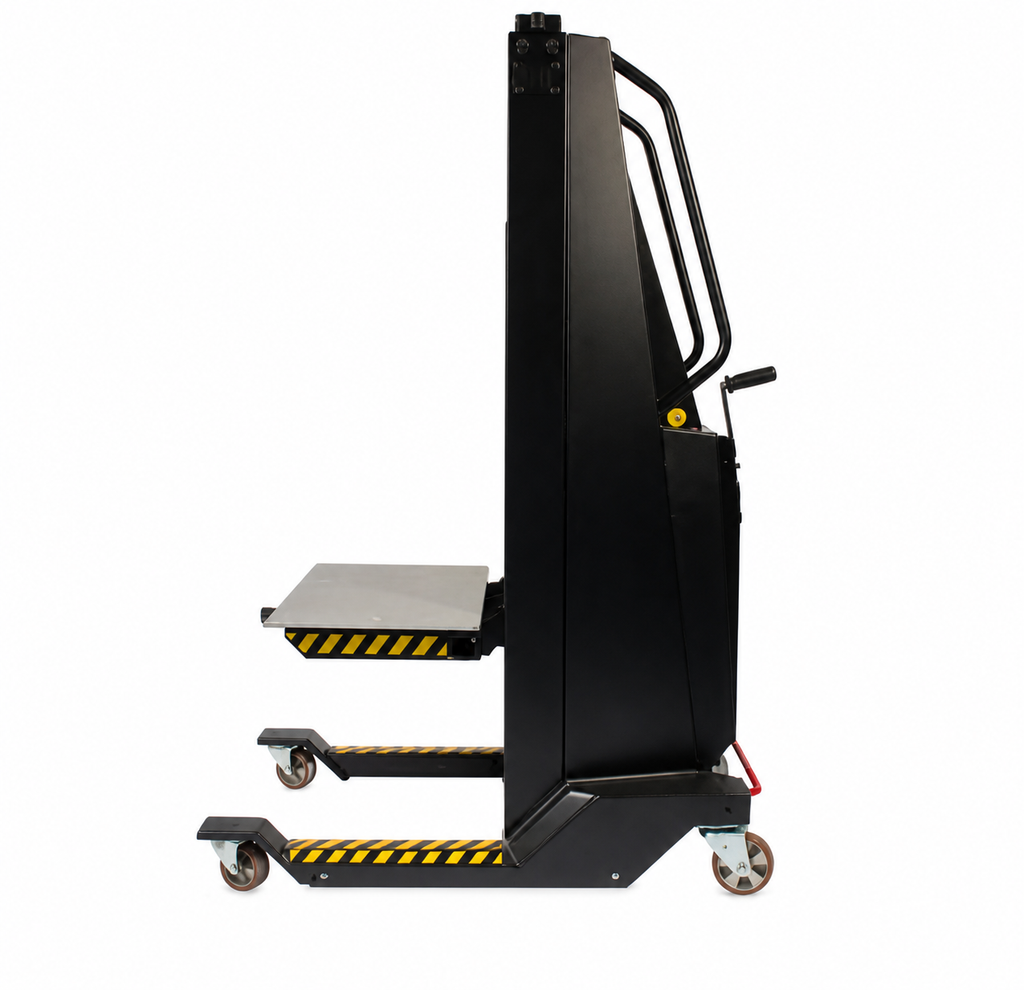

Manual server lifter for loads up to 175 kg and heights up to 2.3 m, with side-shift platform, automatic safety brake and no battery charging.
The DataLift M is designed to help a single operator lift, move and position servers and other heavy IT equipment with controlled manoeuvrability through doorways, lifts and narrow cabinet aisles.
Key features
- 175 kg centre load capacity at heights up to 2.3 m
- Manual winch means no battery charging or mains supply
- Automatic safety brake and lowest-position stop indicator
- 175 mm side-shift platform for loading from either side
- Non-marking wheels and wide brake lever for controlled positioning
- Designed and manufactured in Finland
Technical specifications
| Centre load capacity |
175 kg (385 lb) |
| Maximum lifting height |
2.30 m |
| Minimum platform height |
0.135 m |
| Platform size |
0.61 x 0.42 m |
| Overall dimensions |
1.15 x 0.64 x 1.71 m |
| Weight (unloaded) |
169 kg |
| Drive / voltage |
Manual winch |
| Lifting cycles |
No charging required |
| Input voltage for charger |
Not applicable |
| Compliance |
CE marked; EN ISO 3691-5:2020-11; EN 12100:2010 |
Safety and compliance
Built for professional data centre equipment handling and compliant with relevant European and international safety requirements, including EN ISO 3691-5:2020-11 and EN 12100:2010.
Pricing and availability: Supplied on a project quotation basis. Contact Comms Online on 03301 330 695 or sales@commsonline.co.uk for current lead time, options and pricing.
