Heavy-duty server lifter for equipment up to 500 kg, with remote control, side-shift loading and precise manoeuvrability in narrow data centre aisles.

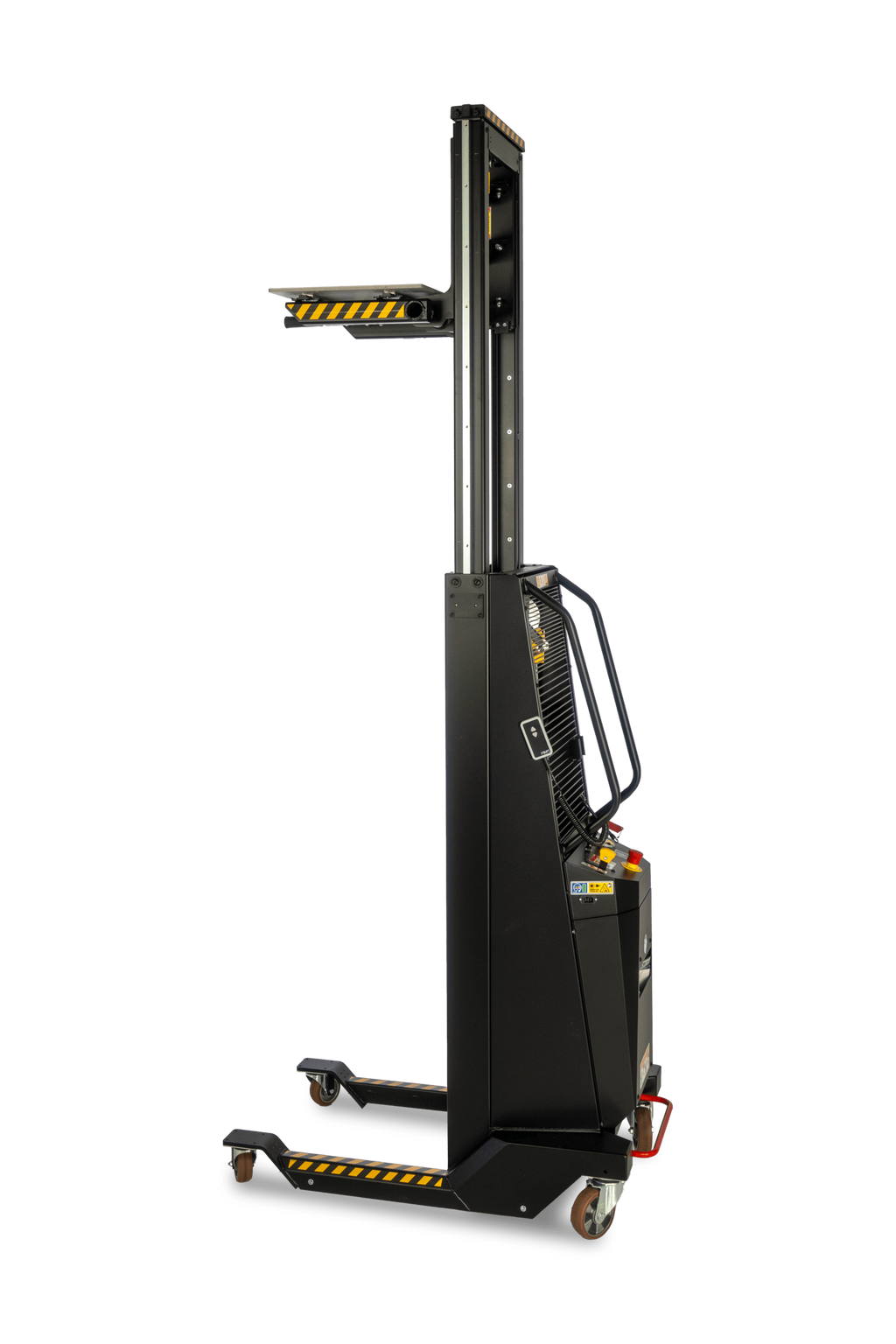

The DataLift E Max is designed to help a single operator lift, move and position servers and other heavy IT equipment with controlled manoeuvrability through doorways, lifts and narrow cabinet aisles.
Key features
- Handles loads up to 500 kg at heights up to 1.5 m
- Lifts 250 kg loads to the full 2.4 m operating height
- 175 mm side-shift platform for left or right loading
- Remote control, emergency stop and non-marking wheels
- Non-marking wheels and wide brake lever for controlled positioning
- Designed and manufactured in Finland
Technical specifications
| Centre load capacity |
500 kg to 1.5 m; 250 kg to 2.40 m |
| Maximum lifting height |
2.40 m maximum |
| Minimum platform height |
0.135 m |
| Platform size |
0.61 x 0.42 m |
| Overall dimensions |
1.15 x 0.64 x 1.71 m |
| Weight (unloaded) |
285 kg |
| Drive / voltage |
24 V |
| Lifting cycles |
120 cycles at 150 kg; 80 cycles at 500 kg |
| Input voltage for charger |
180-265 V AC, 45-65 Hz |
| Compliance |
CE marked; EN ISO 3691-5:2020-11; EN 12100:2010 |
Safety and compliance
Built for professional data centre equipment handling and compliant with relevant European and international safety requirements, including EN ISO 3691-5:2020-11 and EN 12100:2010.
Pricing and availability: Supplied on a project quotation basis. Contact Comms Online on 03301 330 695 or sales@commsonline.co.uk for current lead time, options and pricing.
